configuration

Standard configuration：

Built-in electric spindle unit

High torque A and C 5-axis rotary table

Linear scale on three axes

Siemens ONE control system

40T ATC

Selective configuration：

Heidenhain TNC640 controller

Laser tool setter

Automatic Workpiece Measuring System

60T ATC

X,Y linear motor, Z double drive

Turning function

 performance

Excellent structural design 1.Bed, column double U-shaped structure design, constituting a return force flow structure, greatly improving the rigidity of the machine and accuracy retention. 2.Compact machine layout with guideways, drives and tool changers safely located outside the machining area 3.The four beveled square-open chip discharge structure in the inner cavity of the bed constitutes a smooth chip discharge method, which reduces the accumulation of iron chips during the machining process of the machine. 4.The column adopts a center-mounted ball screw transmission structure, which effectively suppresses the vibration of the machine tool during high acceleration and deceleration. 5.The crossbeam adopts a large span 4 guide rails support structure, which effectively improves the rigidity of the whole machine operation and increases the machining precision.

Highly reliable and efficient drive positioning system 1.X, Y, Z are connected to high-precision ball screw through backlash-free elastic coupling , to ensure the positioning accuracy of the machine tools 2.X and Z axis adopts Taiwan HIWIN 45mm wide roller linear guideway, Y axis adopts 4pcs 55mm roller linear guideway to improve transmission rigidity. 3.The rotary axes A and C are equipped with high torque motors, which optimizes the rotary accuracy of the whole machine. The table load capacity is up to 1200kg, with large processing range. 4. The working table has a large swing range of ±120 °, and can process 30 ° bottom cutting processing. 5.Configured with high torque and high speed electric spindle, with wide range of speed change; constant temperature water circulation cooling method ensures the stability of spindle rotary precision.

Reasonable configuration 1. Pneumatic protection door is equipped between the machining area and the tool magazine, and the protection design is humanized. 2. The spindle adopts air blowing structure, and the inner taper hole of the spindle and the shank of the tool are cleaned before the tool change to remove the residue and ensure the high precision and rigidity of the spindle. 3.3D simulation and comprehensive tool management functions are possible. 4. The machine adopts centralized automatic lubrication device with electric pump to lubricate the screw and guideway surface automatically and intermittently at regular time and quantity, which is stable and reliable.

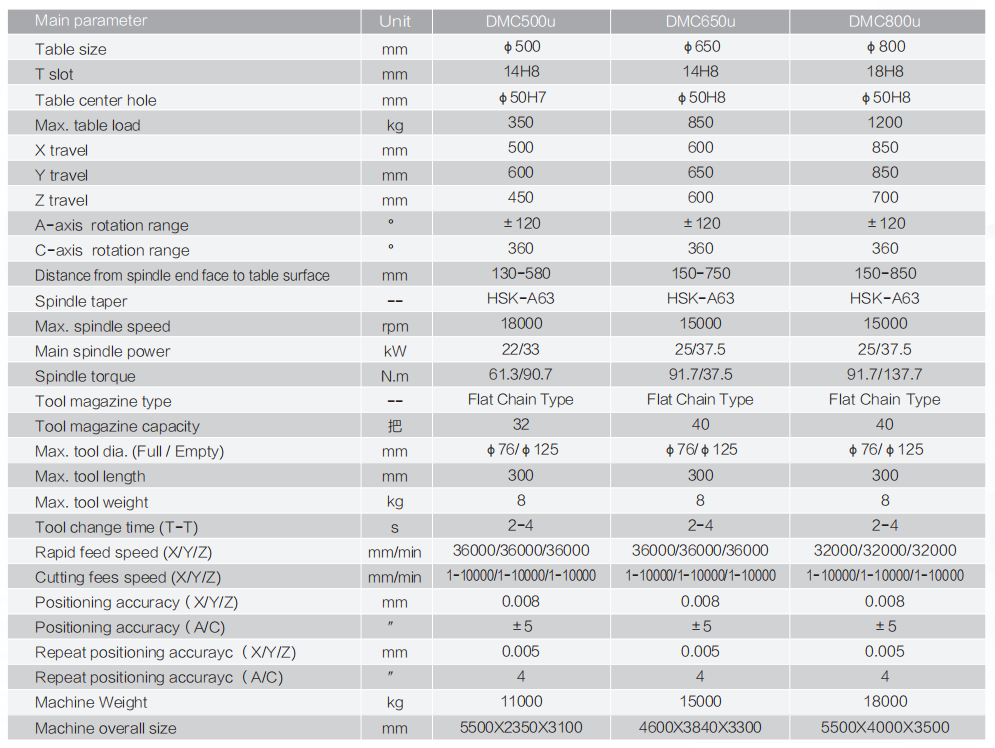

parameter
